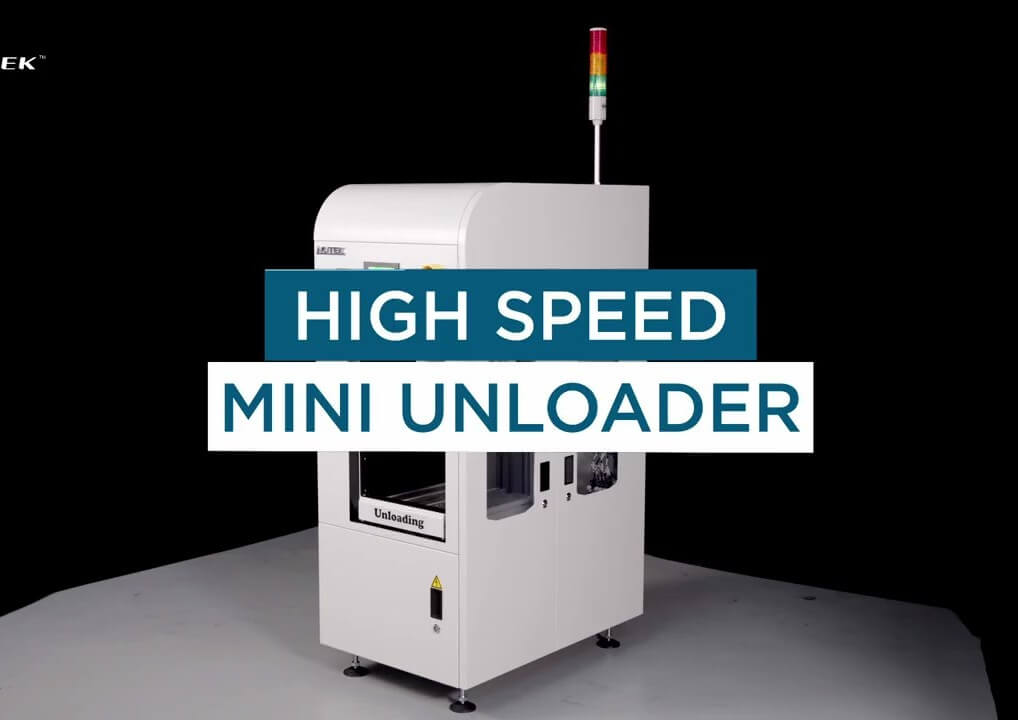

HIGH SPEED MINI UNLOADER
The High Speed Mini Unloader is used to unload substrates, SERIES lead- frames, carriers from the line. The empty magazine is automatically picked up from the upper magazine conveyor. Via the mini conveyor the product is transferred into the magazine, starting at the top magazine slot. A pneumatic pusher extends to push the product completely inside the magazine before magazine indexes to the next position. When the magazine is full it is automatically placed on to the lower magazine conveyor.
STANDARD FEATURES - HIGH SPEED MINI UNLOADER
- Operation by touch screen
- Stores up to 10 different type of magazines
- Swift change-over between different magazine types
- Multi magazine capacity, quantity depends on external magazine dimensions
- Stainless steel magazine guide
- Servo controlled lifter motor
- High speed and precise indexing according to the selected magazine
- Regulated pressure on pneumatic pusher
- Hand crank width adjustment belt conveyor
- Controlled by PLC
- LED towerlight display for machine status
- CE certified.
TECHNICAL DRAWING - HIGH SPEED MINI UNLOADER
OPTIONS
- Alarm buzzer.
- Other options available on request
SPECIFICATIONS
Transfer height
950 mm ± 25 mm*
Colour
RAL 9002*
Flow direction
Left to right*
Fixed rail
Front*
Machine interface
IPC-SMEMA-9851
Power supply
230 VAC/50 Hz/1 Ph
Power consumption
850 VA max.
Air supply
6 bar
Air consumption
10 ltr/min max.
Product loading time
± 5 seconds
Magazine change-over time
± 20 seconds
Indexing pitch
3 mm (min)
No. of magazines
Depends on magazine type
Product width
30 - 120 mm
Product length
100 - 254 mm
Product thickness
> 0,1 mm
* or specify
MACHINE SIZES
NTM4412UM
Machine L x W x H (mm)
535 x 956 x 1571
Weight (Kg)
210
Magazine Length (mm)
165 - 305
Magazine Width (mm)
35 - 127
Magazine height (mm)
< 330
Fixed rail to front (A) (mm)
530
