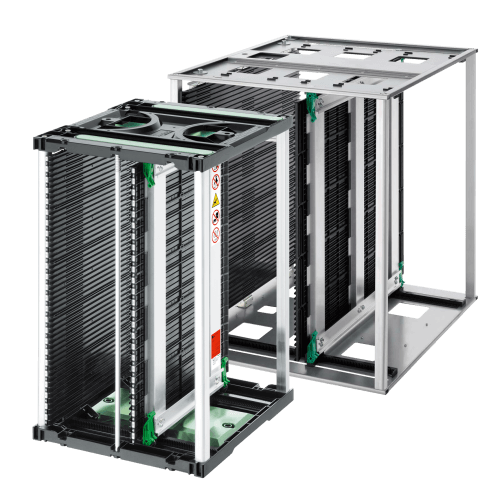

STANDARD FEATURES - NIKKO RACK
- Precise and rapid adjustment to PCB width using patented rack & pinion system.
- Quick width adjustment in less than 5 seconds.
- Absolute parallel while providing excellent rigidity.
- Cardguides which can withstand PCB temperature up to 135°.
TECHNICAL DRAWING - NIKKO RACK
OPTIONS
- Contamination: Base Cover, Dust Cover
- PCB Missinsertion: Numbering Label, Slot Stopper, Slot Cover
- Stackable: Locking Support
- Carrying: Dolly
- PCB Stopper: Stopper Bar, Swing Lock Stopper
SPECIFICATIONS
Material
Conductive PPE Plastic or Metal (Base and Top plate)
Colour
Black
Surface resistance
1 x 10³ ≤ Rx < 1 x 10⁹ as whole Magazine Rack
PCB Temperature
135˚C max.
Stackable
Optional (Base Cover, Locking Support)
Transport safety
Optional
Number of grooves
50
Depth of groove
3 mm
Width of groove
5 mm
Pitch of groove
10 mm
