coating inverter

The coating inverter is designed to gently flip the PCB, creating the possibility to coat the board at both sides without manual handling. The coating inverter comes with advanced operation modes and exhaust safety system.

Add to my circuit Make enquiry Datasheet

STANDARD FEATURES - coating inverter

Exhaust connection 6” with dwyer differential pressure safety switch.
Removable stainless steel drip pan.
Selectable operation mode:
- Invert
- Return and invert
- Invert twice
- By pass
Automatic conveyor width adjustment.
7” full colour touchscreen display.
Advanced graphic Human Machine Interface (HMI).
Multi level user acces control.
In,- & Output diagnostics on touchscreen display.
2000 product recipes storage.
Ethernet connection for network interface.
Bullit-in torque limiter.
Inversions continue from last unloading, cycle time decrease.
CE Certified.

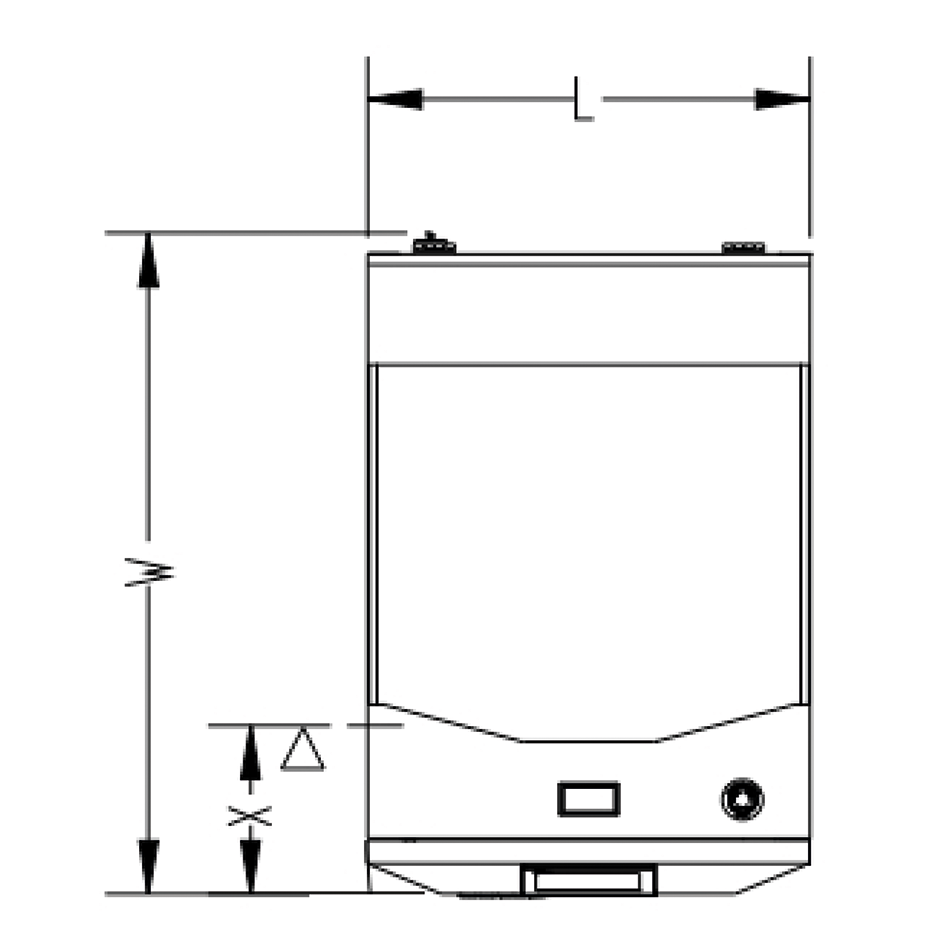

Technical drawing - coating inverter

OPTIONS

IPC-HERMES-9852 communication.
Automatic product change-over by Nutek leader - follower software.
Line Control Software ready.
Remotely accessible PLC.
Cantilevered input- or output conveyor (length 500mm)
Top clamping to hold down board during inverting
Safety shutter at input- or output
Towerlight display
Alarm buzzer
Other options available on request

SPECIFICATIONS

Transfer height

950 mm ± 25 mm*

Colour

RAL 9002*

Flow direction

Left to right*

Fixed rail

Front*

Machine interface

SMEMA*

Conveyor concept

Metal 06B chain

Conveyor speed

0-12 m/min

PCB edge support

4 mm*

Components clearance

Top 90 mm, bottom 90 mm

Power supply

230 VAC/50 Hz/1 Ph

Power consumption

350 VA max

Air supply

6 bar

Air consumption

1,5 ltr/min

* or specify

MACHINE SIZES - M

NTA 310CM

Machine L x W x H (mm)

500 x 729 x 1330

Weight (Kg)

110

PCB Length (mm)

80 - 330

PCB Width (mm)

75 - 250

Fixed rail to front dim. X (mm)

252

MACHINE SIZES - XL

NTA 310CXL

Machine L x W x H (mm)

653 x 1090 x 1330

Weight (Kg)

170

PCB Length (mm)

80 - 460*

PCB Width (mm)

75 - 460*

Fixed rail to front dim. X (mm)

252

* Depending on specifications

Download our datasheet for more specifications.

Datasheet
