Destacker

This unit is designed to automatically load bare PCB’s from a stack to the downstream machine. PCB stack is located above the conveyor segment. The ergonomic design makes manually loading a new stack easier. The bottom pcb is separated from the stack by unique separation cams and lowered onto the ESD edge belt segment. The open design allows continious stack loading without stopping operation. The 7” full colour touchscreen display allows easy operation on multiple user levels.

advancedseries.svg
a nta 220ds destacker 250129

STANDARD FEATURES - Destacker

  • The ergonomic design makes manually loading a new stack easier.
  • Automatic conveyor width adjustment.
  • 7” full colour touchscreen display.
  • Advanced graphic Human Machine Interface (HMI).
  • Multi level user acces control.
  • In,- & Output diagnostics on touchscreen display.
  • 2000 product recipes storage.
  • Bypass mode selectable without removing PCB stack.
  • Low stack prewarning.
  • Ethernet connection for network interface.
  • LED towerlight display for machine status.
  • CE Certified.

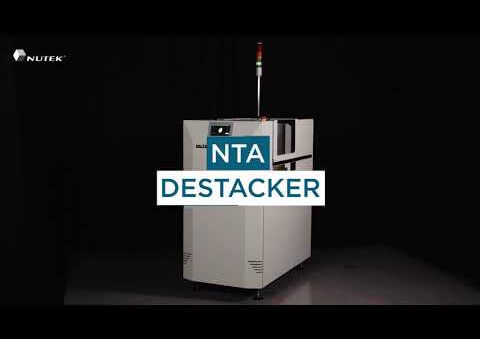

VIDEO NTA 220DS - Destacker

-

a nta220ds destacker tek

Technical drawing - Destacker



OPTIONS

  • IPC-HERMES-9852 communication.
  • Automatic product change-over by Nutek leader - follower software.
  • Line Control Software ready.
  • Remotely accessible PLC.
  • Automatic PCB thickness adjustment.
  • Cantilevered output conveyor (500 mm).
  • Sliding topcover for dust protection.
  • Conveyor rail extension of 200mm.
  • Alarm buzzer.
  • Other options available on request
SPECIFICATIONS
Transfer height
950 mm ± 25 mm*
Colour
RAL 9002*
Flow direction
Left to right*
Fixed rail
Front*
Machine interface
IPC-SMEMA-9851*
Components clearance
Top 30 mm, bottom 30 mm
Power supply
230 VAC/50 Hz/1 Ph
Power consumption
190 VA max
Air supply
6 bar
Air consumption
25 ltr/min max
Belt speed
14 m/min
PCB edge support
3 mm
PCB cycle time
± 8 seconds
PCB thickness
0,6 - 4 mm
PCB Weight
2,5 Kg (max)
PCB Stack weight
30 Kg (max.)
PCB Stock capacity
220 mm
* or specify
MACHINE SIZES - M
NTA 220DSM
Machine L x W x H (mm)
500 x 1205 x 1330
Weight (Kg)
150
PCB Length (mm)
80 - 460
PCB Width (mm)
50 - 250
Fixed rail to front dim. X (mm)
247
Towerlight height Z (mm)
2000
* Depending on specifications
MACHINE SIZES - XL
NTA 220DSXL
Machine L x W x H (mm)
653 x 1260 x 1330
Weight (Kg)
160
PCB Length (mm)
80 - 460*
PCB Width (mm)
50 - 460*
Fixed rail to front dim. X (mm)
247
Towerlight height Z (mm)
2000
* Depending on specifications

Download our datasheet for more specifications.
